Ready to understand what's happening when your devices connect to Wi-Fi? We recently held a webinar series covering basic Wi-Fi technology concepts as well as the tools used in wireless throughout the lifecycle.
In this post, I’ll summarize the Wi-Fi 101 parts 1 and 2 from the webinar series.
The Organizations Behind Wi-Fi
Wi-Fi exists because of two key organizations working together to create and promote wireless networking standards. The IEEE (Institute of Electrical and Electronics Engineers) serves as the technical foundation, creating the actual standards that define how wireless communication works. The IEEE has developed numerous standards you interact with daily, including 802.15.1 (the technical specification behind Bluetooth), 802.15.4 (which drives Zigbee home automation and Thread), IEEE 1394 (the basis for FireWire), 802.3 (Ethernet), and of course 802.11 (Wi-Fi).
The Wi-Fi Alliance handles the business side of wireless networking, composed of major industry players like Apple, Cisco, Nokia, Microsoft, and Dell. They perform three crucial functions: applying memorable branding (the term "Wi-Fi" doesn't stand for anything - it just sounds good), ensuring interoperability between different vendors' devices, and creating user-friendly names for security protocols. Without the Wi-Fi Alliance's interoperability testing, we might still be stuck with incompatible wireless devices that can't communicate across different manufacturers.
The alliance's branding efforts have been particularly successful. WPA, WPA2, and WPA3 are much more user-friendly than referencing the underlying IEEE 802.11i security standard. Similarly, the recent introduction of Wi-Fi 4, 5, 6, and 6E branding makes it easier for consumers to understand what they're buying instead of deciphering acronym soup like 802.11n, 802.11ac, and 802.11ax.
Understanding Frequency Bands

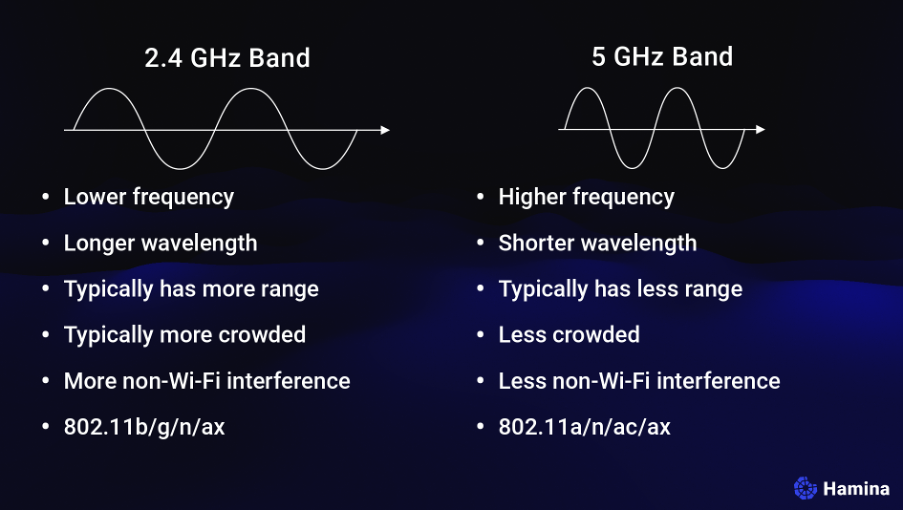

Wi-Fi operates across three main frequency bands, each with distinct characteristics that affect performance and deployment strategies. The 2.4 GHz band represents the original Wi-Fi territory, offering excellent range (approximately 300 feet) due to its longer wavelength. However, this band suffers from significant crowding issues since it houses not just Wi-Fi networks, but also Bluetooth devices, cordless phones, microwave ovens, baby monitors, and various other unlicensed devices competing for the same airspace.
The 5 GHz band provides a cleaner RF environment with much less non-Wi-Fi interference, though it sacrifices range for this benefit (typically around 90 feet). The higher frequency results in a shorter wavelength that doesn't penetrate obstacles as effectively as 2.4 GHz signals. When shopping for Wi-Fi equipment, devices supporting 802.11a or 802.11ac are guaranteed to work in the 5 GHz band, while devices listing only 802.11b, g, n, or ax might be 2.4 GHz-only products.
The newest addition is the 6 GHz band, which offers the cleanest spectrum environment with minimal interference from legacy devices. This band provides the most room for growth and represents the biggest advancement in Wi-Fi since the introduction of 802.11n.
The Evolution of Wi-Fi Standards

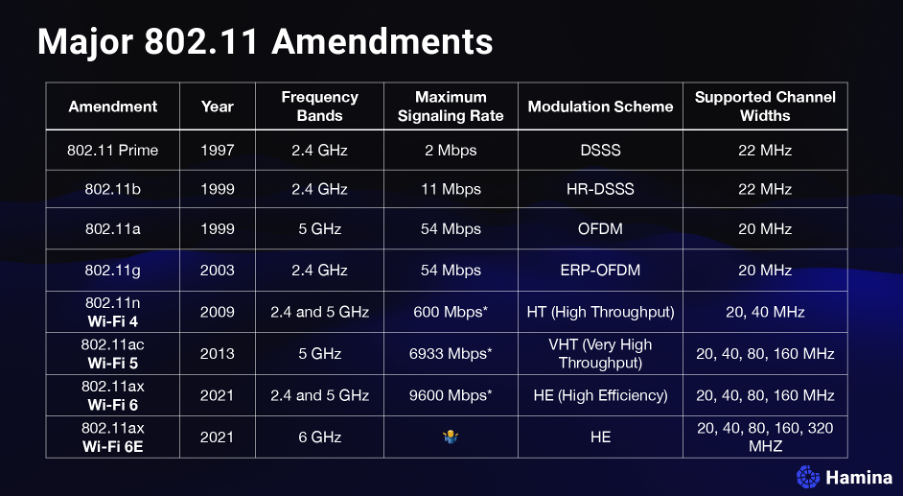

Understanding Wi-Fi's history is crucial because modern networks still rely heavily on the original protocols from 1997. The original 802.11 standard operated in 2.4 GHz using Direct Sequence Spread Spectrum (DSS) modulation, offering just 1 and 2 Mbps data rates across 22 MHz-wide channels.
802.11b emerged in 1999 as the first major improvement, adding 5.5 and 11 Mbps rates using High Rate Direct Sequence Spread Spectrum (HR-DSS). This amendment maintained backward compatibility with the original standard while providing much-needed speed improvements. Around the same time, 802.11a introduced a revolutionary new approach by moving to the 5 GHz band and implementing OFDM (Orthogonal Frequency Division Multiplexing) modulation to achieve 54 Mbps rates across 20 MHz channels.
The breakthrough came in 2003 with 802.11g, which brought OFDM's high-speed capabilities down to the 2.4 GHz band. This created the best of both worlds - the range advantages of 2.4 GHz combined with the speed benefits of OFDM modulation. The Linksys WRT54G router became the poster child for this era, making Wi-Fi ubiquitous in homes and businesses.
Modern Wi-Fi Standards:
- 802.11n (Wi-Fi 4): Unified 2.4 and 5 GHz operation, introduced 40 MHz channel bonding
- 802.11ac (Wi-Fi 5): 5 GHz-only focus on raw throughput with 80 and 160 MHz channels
- 802.11ax (Wi-Fi 6): Efficiency improvements across 2.4 and 5 GHz bands
- 802.11ax-6E (Wi-Fi 6E): Extension into the 6 GHz band with 320 MHz channel support
The IEEE's obsession with backward compatibility means that most management traffic on modern networks still uses legacy data rates from the original 802.11 standard, making this historical knowledge essential for understanding current Wi-Fi behavior.
Channel Layout and Interference
The 2.4 GHz band presents unique challenges due to its limited spectrum allocation. While there appear to be multiple channels available (1 through 14 in some regions), the reality is more constrained. Each channel is 20 MHz wide, but the channel centers are only separated by 5 MHz, creating massive overlap between adjacent channels. This overlap leaves only three truly non-overlapping channels: 1, 6, and 11.
Adjacent channel interference occurs when access points operate on overlapping channels, similar to trying to have a conversation at a restaurant table while an unrelated loud conversation happens at the neighboring table. Both conversations suffer because they're not coordinated - they just interfere with each other destructively.
Co-channel interference, while more common, is actually easier for Wi-Fi to handle because it represents the normal sharing behavior that 802.11 was designed to manage. Wi-Fi is fundamentally half-duplex, meaning only one device can transmit on a channel at any given time. When multiple devices need to use the same channel, they must take turns through a sophisticated arbitration process.
The "slow device problem" illustrates why proper network design matters. When a device experiences poor signal conditions, it drops to lower data rates for reliability. Since airtime is shared equally rather than throughput, a device transmitting at 1 Mbps consumes 65 times more airtime than a device at 65 Mbps to send the same amount of data. This dramatically impacts the performance of all devices sharing that channel.
Channel Reuse and Network Design
Effective 2.4 GHz design requires careful channel reuse planning, strategically separating access points using the same channel so they can't hear each other and don't have to coordinate their transmissions. This is easier said than done in real-world deployments, where coverage areas are irregular blobs rather than neat circles, and some level of co-channel interference is inevitable.
The 5 GHz band offers much more flexibility with 25 non-overlapping 20 MHz channels, making channel reuse planning significantly easier. The 6 GHz band provides even more spectrum, though availability varies by regulatory domain - the US has access to approximately 1200-1300 MHz while Europe currently has only about 500 MHz available.
Modern network planning tools automatically handle much of this complexity, turning off radios when necessary and selecting optimal channel plans based on coverage requirements and interference calculations. These tools can dynamically adjust between different channel widths to balance speed and interference concerns.

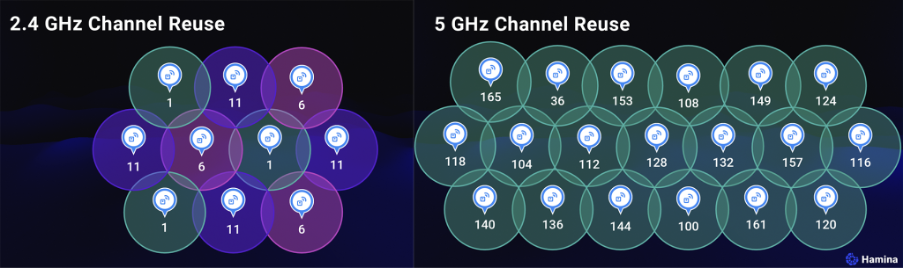

2.4 GHz vs 5 GHz channel reuse
Channel Bonding and Width Selection
Channel bonding allows multiple 20 MHz channels to be combined into wider channels for increased throughput. While 802.11n introduced 40 MHz bonding, subsequent standards expanded this to 80, 160, and even 320 MHz channels. However, wider channels reduce the number of available channels, making effective reuse more challenging.
Practical Channel Width Guidelines:
- 2.4 GHz: Stick with 20 MHz due to limited spectrum
- 5 GHz: Start with 40 MHz, drop to 20 MHz when channel reuse becomes problematic
- 6 GHz: Many designers start with 80 MHz channels, treating "80s as the new 40s"
The key principle is using the widest channel possible until frequency space limitations force a reduction. Modern planning tools can automatically make these decisions and clearly indicate when and why they've made channel width adjustments.
This foundation of spectrum management, channel planning, and interference mitigation sets the stage for understanding the more advanced topics covered in Part Two, including frame analysis, roaming behavior, and security implementations that build upon these fundamental concepts.
Wi-Fi 101 - Part Two
Understanding Network Identifiers
Wi-Fi networks use three different types of identifiers to organize and manage connections. The most fundamental is the BSSID (Basic Service Set Identifier), which is essentially the MAC address of an access point's radio. Since modern access points typically have multiple radios for different frequency bands, each radio gets its own unique MAC address and corresponding BSSID. For example, a dual-band access point might have one radio ending in B7 for 2.4 GHz and another ending in B8 for 5 GHz.
The SSID (Service Set Identifier) is the friendly network name that users see when looking for Wi-Fi networks on their devices - names like "Aperture Science" or "Coffee Shop WiFi." When multiple access points share the same SSID to create a larger coverage area, they collectively form what's called an ESSID (Extended Service Set Identifier). This allows users to roam seamlessly between access points while maintaining their connection to the same logical network.
Signal Strength and the Challenge of dBm
Wi-Fi signal strength measurements can be confusing because they deal with extremely small power levels and use a logarithmic scale. Signal strength is typically measured in dBm (decibels relative to one milliwatt), and these values are always negative because Wi-Fi operates at very low power levels. The closer to zero, the stronger the signal - so -30 dBm represents excellent signal strength, while -90 dBm indicates you're barely above the noise floor.
Understanding the "rule of 3s and 10s" makes these measurements much more intuitive:
- A 3 dB increase doubles your signal strength
- A 3 dB decrease cuts your signal strength in half
- A 10 dB increase gives you 10 times the signal strength
- A 10 dB decrease reduces signal strength to one-tenth
The industry uses dBm instead of linear measurements like milliwatts because the actual power levels are incredibly small. For example, -60 dBm equals 0.000001 milliwatts, which would be extremely cumbersome to communicate during troubleshooting calls between engineers.
Signal-to-Noise Ratio: The Real Performance Indicator
While signal strength gets most of the attention, signal-to-noise ratio (SNR) is actually more important for Wi-Fi performance. SNR measures how much your signal stands above the background noise, similar to trying to have a conversation in a noisy restaurant versus a quiet room. Most modern networks target 20-25 dB of SNR for optimal performance.
When SNR degrades, devices automatically adapt by reducing their data rates and increasing retry attempts. This dynamic rate selection helps maintain connectivity even in challenging RF environments, but it comes at the cost of throughput and efficiency. A device might start at 65 Mbps but drop down to much lower rates as it moves away from the access point or encounters interference.
The Evolution of Data Rates
Wi-Fi data rates have evolved dramatically over the years. The original 802.11b standard offered simple rates of 1, 2, 5.5, and 11 Mbps. When 802.11a and 802.11g introduced OFDM (Orthogonal Frequency Division Multiplexing), the available rates expanded to 6, 9, 12, 18, 24, 36, 48, and 54 Mbps.
Modern Wi-Fi standards like 802.11n, 802.11ac, and 802.11ax use complex Modulation and Coding Schemes (MCS) that create hundreds of possible data rate combinations. These rates depend on multiple factors:
- Number of spatial streams supported
- Channel width (20, 40, 80, or 160 MHz)
- Guard interval settings
- Specific modulation scheme used
The fastest rates require excellent signal-to-noise ratios to function reliably, which is why maintaining good RF design is crucial for achieving optimal performance.
Frame Types: The Building Blocks of Wi-Fi Communication

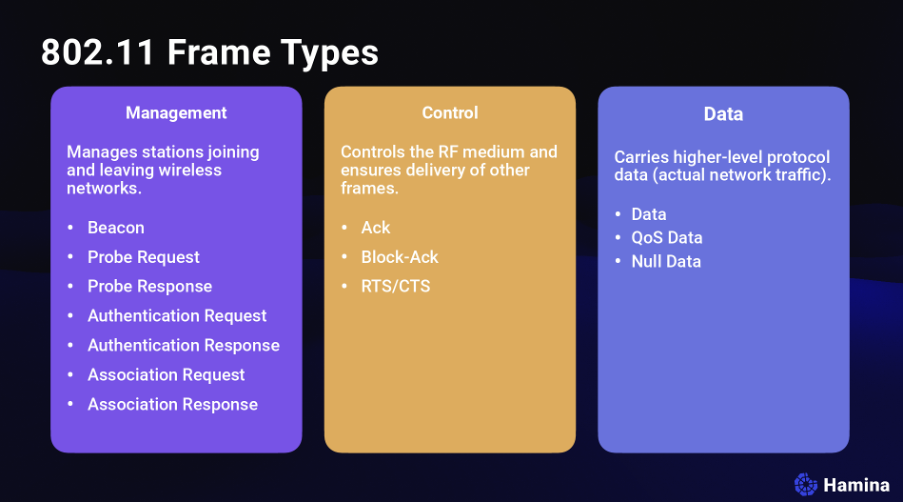

Wi-Fi communication relies on three main types of frames, each serving a specific purpose. Management frames handle the process of devices joining and leaving networks. The most common management frame is the beacon, transmitted roughly 10 times per second by each access point to announce its presence and capabilities. When you see available networks on your device, that's because your Wi-Fi adapter is receiving these beacon frames containing network names and supported features.
Control frames manage the RF medium and ensure reliable delivery of other frame types. Acknowledgment frames confirm successful transmission, while block acknowledgments allow multiple frames to be confirmed simultaneously for better efficiency. Request-to-Send (RTS) and Clear-to-Send (CTS) frames help resolve hidden node problems where devices can't hear each other directly.
Data frames carry the actual network traffic that users care about - web browsing, video streaming, file transfers, and other applications. Quality of Service (QoS) data frames include priority markings to ensure time-sensitive traffic like voice calls gets preferential treatment over less critical data.
Channel Access: How Devices Take Turns
One of the most remarkable aspects of Wi-Fi is how devices coordinate access to shared channels. The process uses a system called CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance) that's essentially a sophisticated "taking turns" mechanism happening thousands of times per second.

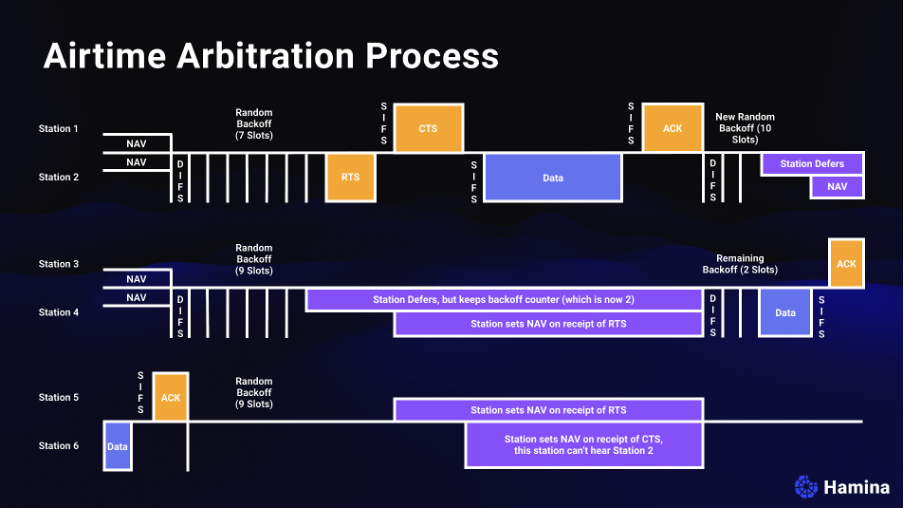

When multiple devices want to transmit, they first wait for a DIFS (Distributed Inter-Frame Space) period that signals an opportunity to talk. Each device then generates a random backoff timer - essentially rolling dice in their head. The device with the shortest timer gets to transmit first, while others defer their transmission and remember their remaining time slots for the next opportunity.
During transmission, all other devices set NAV (Network Allocation Vector) timers based on how long the transmitting device said it would need the channel. This prevents collisions and ensures orderly access to the shared medium. The fact that this complex coordination works reliably enough to support multiple high-bandwidth applications simultaneously is truly remarkable.
Check out the recording for a walk through of this process
Roaming
Roaming decisions are entirely controlled by client devices. This process varies significantly between different device types and manufacturers, which explains why an iPhone might roam at different signal levels than a Windows laptop or Android phone.
Multiple factors influence roaming decisions:
- Signal strength of the current and potential access points
- Signal-to-noise ratio and retry rates
- Supported channel widths and Wi-Fi standards
- Load balancing capabilities of available access points
The actual roaming process involves several steps that take measurable time. The client must scan for available access points, perform authentication and association procedures, and complete a four-way handshake to establish encryption. While vendors sometimes claim "seamless roaming," there's always some interruption during this process, though modern techniques have reduced it significantly.
Wi-Fi Security Evolution

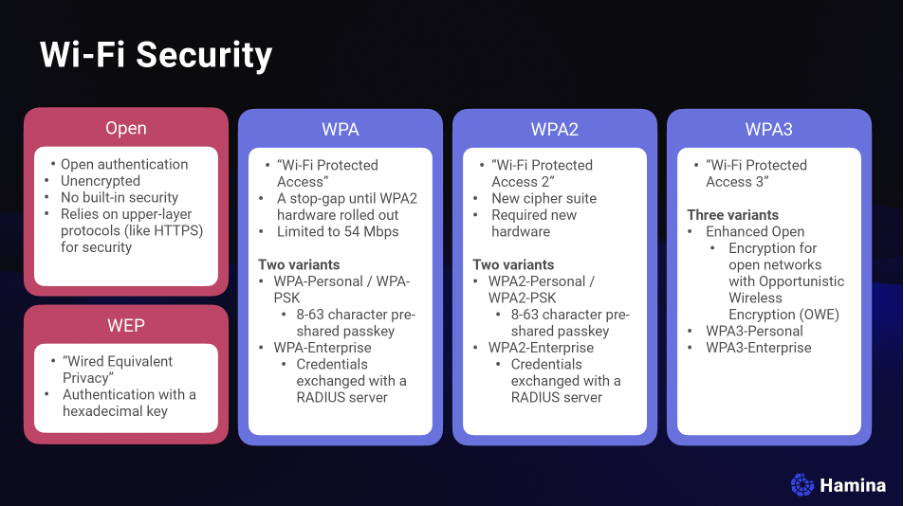

Wi-Fi security has evolved through several generations, each addressing the shortcomings of its predecessors. Open networks provide no built-in security, relying entirely on upper-layer protocols like HTTPS for protection. WPA was introduced as a stopgap measure when WEP was compromised, offering improved security while remaining compatible with existing hardware.
WPA2 became the long-term solution, requiring new hardware but providing robust security that remained largely uncompromised for over a decade. Recent years have seen the introduction of WPA3, which offers enhanced security features and, most notably, Enhanced Open (OWE) - a technology that provides encryption even on public networks without requiring passwords.
The progression from open networks to modern WPA3 implementations demonstrates the industry's commitment to improving security without sacrificing usability. Enhanced Open is particularly exciting because it solves the fundamental problem of public Wi-Fi security, allowing coffee shops and airports to provide encrypted connections without the complexity of password management.
This comprehensive overview of Wi-Fi fundamentals provides the foundation needed to understand more advanced topics in wireless networking, from enterprise design considerations to troubleshooting complex performance issues.
